Used for Spiral Freezer /Bakery Production Lines
For example :
Spiral freezer is a kind of advanced individual quick freezing equipment, which is widely used by modern food processing industry all over the world.
Its advantages (comparing with tunnel freezer with same output capacity):
(1) Saving energy consumption;
(2) Saving floor occupying;
(3) Retention time is much flexible; the adjusted range is larger;
Its applications:
Spiral freezers are mostly used for flour food freezing, meat freezing, seafood freezing and prepared food freezing.
Its structure:
(1) Stainless steel conveyor belt; equipped with safe guard both sides;
(2) Sandwich PUF panels laminated by stainless steel plate both sides; floor panels are equipped;
(3) Door is equipped with frame heating device;
(4) Aluminum evaporators, variable fin pitches;
(5) Axial fans: stainless steel air box, aluminum blades;
(6) Complete welded stainless steel water discharging plate will be installed on top of floor panels. It will bring defrosting water out of cabinet through many stainless steel draining pipes;
(7) The drum, inlet device, outlet device and all structure parts are made of stainless steel;
(8) Control panel is made of stainless steel;
(9) Schneider or Siemens electric components;
(10)SEW speed reducer.
Technical Parameters:
| Models | Output | Installed Power | Refrigeration Consumption (-40 degree C/+40 degree C) | Dimension L*W*H | Belt Width |
| BX-200 | 200kg/h | 3.55kw | 32kw | 4.0*3.3*2.1m | 300mm |
| BX-300 | 300kg/h | 5.15kw | 43.5kw | 4.9*4.1*2.5m | 450mm |
| BX-500 | 500kg/h | 11.2kw | 75kw | 5.6*4.0*2.9m | 450mm |
| BX-1000 | 1000kg/h | 22.0kw | 145kw | 6.8*5.0*3.3m | 600mm |
| BX-1500 | 1500kg/h | 31.0kw | 225kw | 6.8*5.2*4.5m | 600mm |
|
|

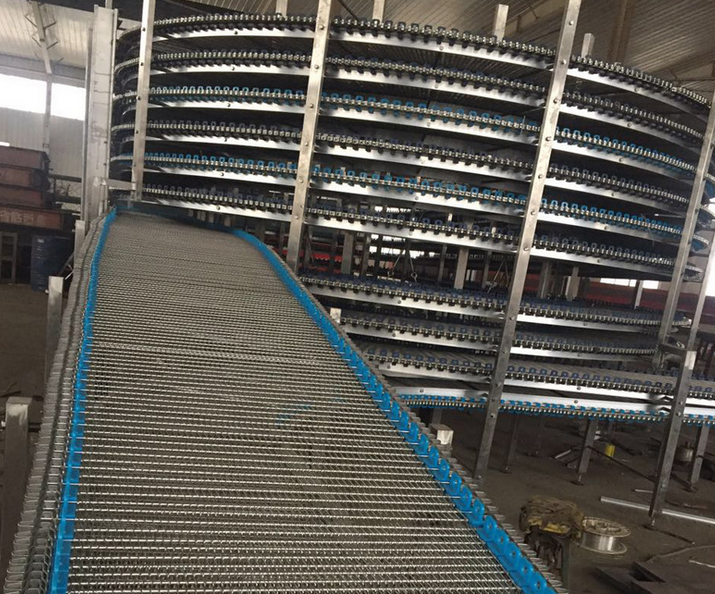

Spiral Cooler for Bread /Cake/Biscuit/Production Line Images
|
